Military Specification
Lens Coating Hardness Kit

Specifications

Summers Optical has attempted to solve our customers procurement problems of certified equipment and supplies for testing lens coatings in accordance with MIL-C-00675, MIL-M-13508, and MIL-F-48616.

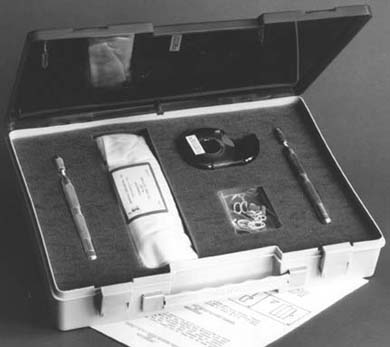

The kit contains two instruments: A brass instrument for testing severe abrasion resistance and contains a 2 1/2 lb spring. An aluminum instrument for testing moderate abrasion resistance and contains a 1 1/4 lb spring. Although the instruments do not conform exactly to drawing 07680606, they have been used for over 20 years with military approval as being essentially the same. The inserts provided with the instruments are manufactured and certified to conform to MIL-E-12397. The calibration of the springs in the instruments is traceable to the National Institute of Standards and Testing.

The kit also contains two additional rubber inserts, 2 sq. yards of cheesecloth meeting MIL CCC-C-440 and one roll of tape meeting MIL-A-A113 Rev. D.

All pertinent certificates of conformance as well as instructions for use are included in the convenient carrying case.


12900

Lens Coating Hardness Tester Kit
Includes the following

Qty Description
1   2-1/2 lb Instrument
1   1 lb Instrument
2   Additional Eraser Inserts
1   Roll MIL-A-A113 Rev. D Tape
    and Dispenser
1   Roll 2 yards MIL-CCC-440
    Cheesecloth (All Instructions and
    Pertinent Certifications)

each

$525.00

Tester Kit Replacement Components
(Supplied with Military Certification Sheets)
12901

2-1/2 lb Test Instrument

each

$335.00

12902

1 lb Test Instrument

each

$335.00

12903

Tape (1/2"x72 yds)

each

$19.00

12904

Tape Dispenser

each

$23.00

12905

Cheesecloth (2 sq. yards)

each

$26.00

12906

Eraser Inserts
1dz

$65.00

12907

Recalibration of Test Instrument

each

$50.00
